产品简介

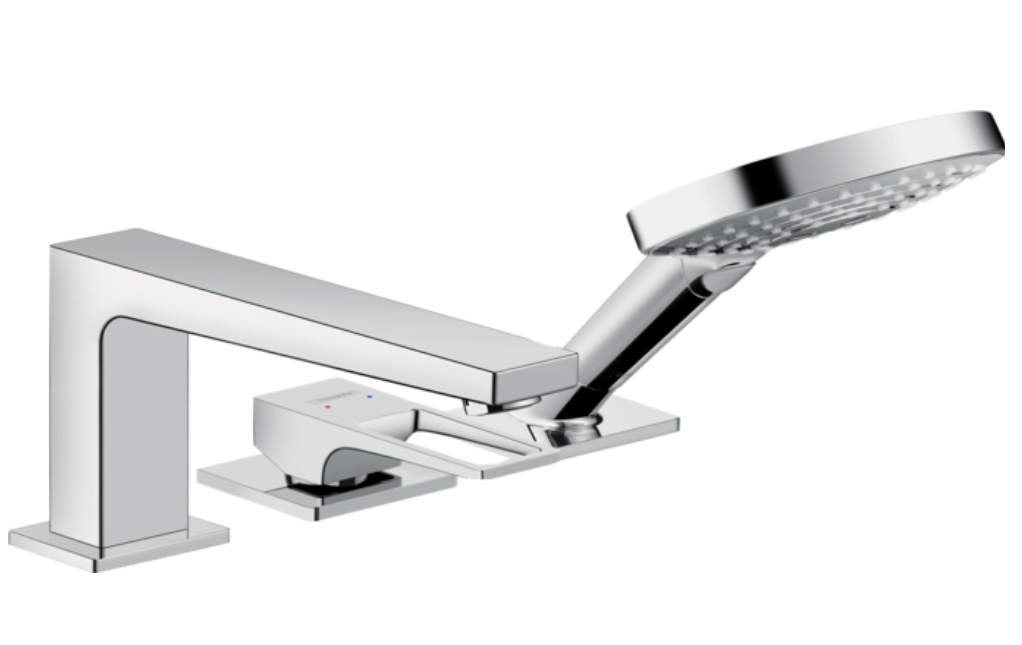

consists of: 4-hole rim mounted bath mixer, hand shower, shower holder

2 functions

projection: 197 mm

spray type mixer: normal spray

spray type hand shower: Rain, RainAir, Whirl

maximum pull-out length of hand shower: 1.10 m

maximum flow rate at 3 bar: 24 l/min

flow rate for bath spout at 3 bar: 24 l/min

flow rate of hand shower at 3 bar: 15 l/min

ceramic valves hot/cold 90°

connection type: basic set

min. operating pressure: 1 bar

max. operating pressure: 10 bar
